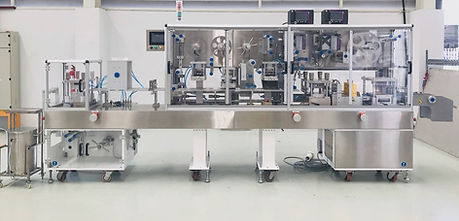

Blister Packing Machine for Pharmaceuticals & Medical Devices
✅ Ideal for:
-
OEM manufacturers producing a wide variety of SKUs
-
Pharmaceutical and nutraceutical factories
-

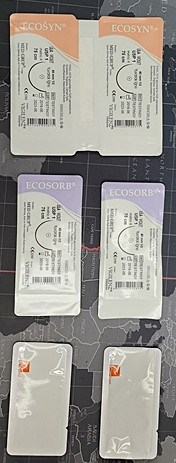

Medical device packaging under cleanroom compliance
-
Facilities with limited space requiring high-efficiency, compact machines
-
Cleanroom environments (up to ISO Class 6-7 / EU GMP Grade C-D)
🛠️ Key Technical Features:
Item Specification
Machine Type Flat-Type Blister Packing Machine
Cleanroom-Friendly Design
– SUS316L / AL5083 for dust-free, hygienic surfaces
– Rounded edges, easy-to-clean smooth surfaces
– No particle-generating zones
– Full safety sensors on all access doors
– Fully isolated drive/mechanism zone (balcony design optional)
Product Contact MaterialSUS316L
Film Drive System Gripper Chain + Servo Motor
Supported Material Alu–Alu (cold-form), optional Alu–PVC
Forming Depth Up to 15 mm
Utility Requirements 380V, 50Hz, 30A / 40–50 L/min air
Noise Level<80 dBA at 1 meter
Speed25–35 cycles/min (up to ~430 packs/min depending on layout)
💻 Control System & EU-Grade HMI:
-
10-inch Touchscreen (DELTA), multilingual interface
-
Controlled via OMRON or DELTA PLC, with 3-level password access
-
Fully compliant with 21 CFR Part 11
-
Supports up to 50 recipe profiles
-
Data Logger option for:
-
Sealing temperature
-
Machine speed
-
Runtime monitoring
-
User login records
-
Alarm and downtime logs
-
📦 Standard Equipment Includes:
-
Cold-form mold with Teflon plug
-
Sealing upper mold (Brass) & lower mold (AL7075)
-
Cutting set (DC53 / S45C)
-
Guide rails and forming modules from aluminum AL5083
-
TIJ printer (Markem-Imaje X45) included (high-resolution, GMP-ready)
🧰 Optional Add-Ons:
-
Auto PVC sheet lock during idle mode
-
Cooling system for sealing mold during stop/pause
-
Camera vision system for tablet inspection (optional)
-
TIJ printing system for variable data (upgradable)
-
Compatible with external chiller and exhaust for thermal/humidity control
🌍 Designed to Meet International Standards:
-
Compliant with Cleanroom ISO Class 7-8 / EU GMP Grade C-D
-
EU Machinery Directive Ready
-
FDA Packaging Regulation (21 CFR Part 11 compliant)
-
Full GMP-Ready structure and layout
